Multi-cylinder logistics transportation
Our specialized three-wheeled vehicles for the logistics and supply chain sector come in two variants: a high-speed, heavy-load type primarily used for transporting heavy cargo and a high-speed, light-load type primarily used for transporting lighter cargo.
Do you need any help?
-

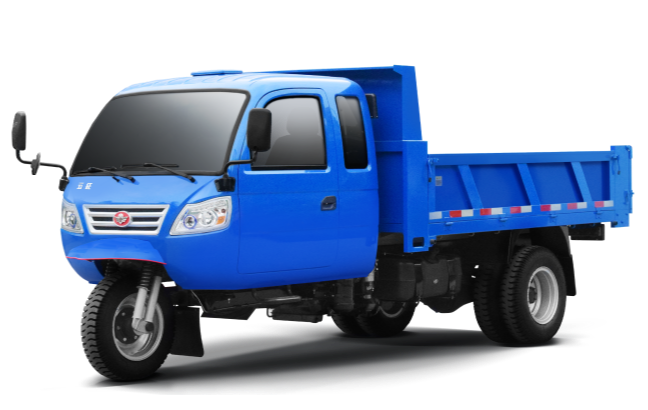

A1700
Multi-cylinder heavy-duty, powerful loading capacity, the preferred heavy-duty choice
-
Diesel engine-
-
Powerful Engine：
Inline four-cylinder diesel engine, power range of 22-46kW, with a stable and reliable drive system.
-
Strong Load Capacity：
510MPa high-strength steel frame, integrated truck drive axle, 90mm wide steel leaf springs, full-steel radial tires, supporting up to 8 tons loading.
-
-
-
Various Configurations：
Optional air brakes, air conditioning, back-up camera, remote door locks, and power windows.
-
High Speed：
Maximum speed of up to 90 km/h.
-
-
-
A1700
Efficient transportation solutions for users worldwide
Use scenarios
Technical specification
-

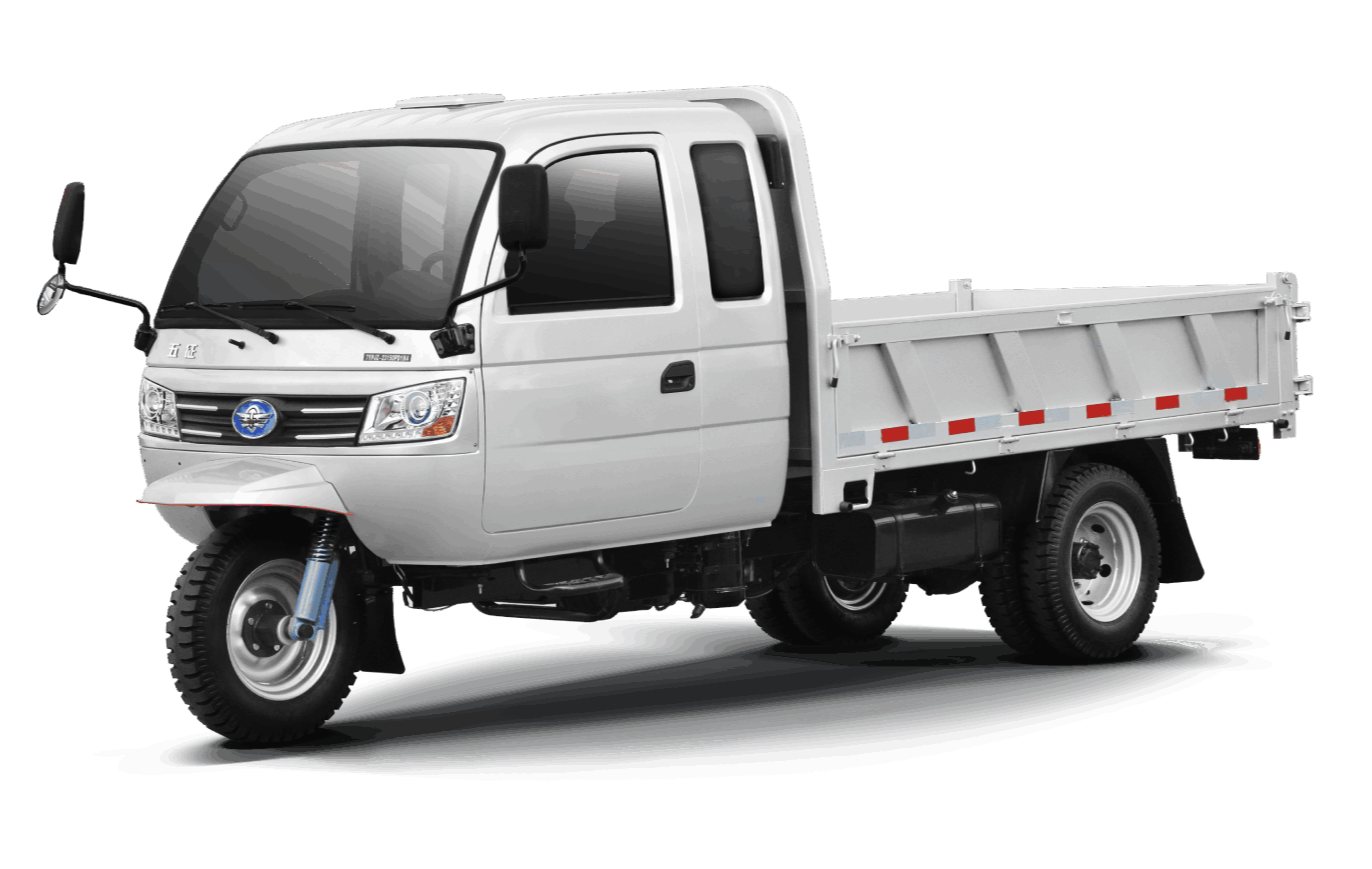

A1600
-
A1700
-
Product Model
-
Body
-
Engine model
-
External contour dimensions
-
Gearbox
-
Wheelbase
-
Front and rear tires
-
Frame form
-
Steering form
-
Shock absorber model
-
Box dimensions
-
Clutch
-
Brake form
-
Dumping method
-
Other configurations
-
-
WKA3B311
-
Aoxiang 1600 one-and-half row version A
-
480/485
-
5030/5180×1600×2050
-
12 gears
-
3410/3480
-
Front 60014, Rear 60016
-
160 channel steel non-external span frame
-
Recirculating ball steering gear/electric power steering gear
-
5658 dual shocks
-
2900/3050×1600×400/450
-
Mechanical clutch
-
Vacuum power brake/dual-module vacuum power brake
-
Hand-controlled hydraulic lifting and lowering
-
Optional electric power steering gear; center door lock; reverse camera; electric fan and other configurations.
-
-
-
WKA5J313
-
Aoxiang 1700 luxury one-and-half row
-
485/490
-
5180/5190×1800×2100
-
12 gears
-
3470/3540
-
Front 60014, Rear 60016
-
170 high-strength steel non-external span frame
-
Recirculating ball steering gear/electric power steering gear
-
6058 triple shocks
-
3050×1800×450
3050/3200×1800×500 -
Hydraulic clutch
-
Air brake
-
Hand-controlled hydraulic lifting and lowering
-
Optional electric power steering gear; optional electromagnetic drip; electric fan; no navigation but with reverse camera; air-cut brake, dryer
-
