3MX ( ICE )

A revolutionary three-wheeled vehicle bringing users more space, more comfort and a flexible solution to satisfy numerous demands.

Do you need any help?

  • 3MX multi-cylinder fully enclosed

    An industry-leading product integrating aesthetics, comfort, functionality and safety

1
  • Frame 1321319600.png
    • Appearance: Perfect combination of power and aesthetics.

    • Comfort: All-round enjoyable driving experience.

    • Maneuverability: Precise driving control, conveying confidence.

    • Safety: Unique structure that doubles safety.

    • High-intensity operations: Carry more with less fuel, excellent cost-effectiveness and durability.

Advantages

Advantages

  • db0_img07.jpg
    Stylish appearance

    3MX embodies the perfect integration of power and aesthetics, featuring a streamlined body and a full LED Galaxy Light Art System. Every detail has been carefully crafted to ensure that you will love it.

    The engineered polymer body, the first of its kind in the industry, will never rust.

  • 企业微信截图_17098835341050.png
    Rational layout

    Professional HMI control performance adjustment, luxury central instruments with intuitive control, optimized variable speed control position, easier control, and industry pioneering one-key hydraulic lifting system for simple and fast control.

  • db0_img06.jpg
    Comfortable riding

    The 3MX, with its advanced ergonomic design, optimizes the layout and increases legroom by 60%, while the front suspension design delivers a significant improvement in shock absorption performance compared to traditional three wheel vehicles, ensuring a stylish appearance and a comfortable driving experience for your daily transportation.

  • db0_img04.jpg
    Multiple protections

    Welded body frame, the first of its kind in the industry. Dual bumpers to effectively reduce impact. Factory-installed front suspension rocker arm shock absorption, improving reliability five times. All-LED galaxy lighting, improving brightness by 80% and irradiation distance by 1.5 times.

Satisfy
Different

Use scenarios
  • db0_img11.jpg
  • /Public/Uploads/uploadfile/images/20231010/db0img009.jpg

Technical specification

  • db0_img11.png

    3MX single-cylinder semi-enclosed/simple shed

  • db0_img09.png

    3MX single-cylinder fully enclosed

  • Frame 1321319600.png

    3MX multi-cylinder fully enclosed

  • Parameters

  • Body

  • Frame form

  • Engine model

  • Box dimensions

  • External contour dimensions

  • Gearbox

  • Front and rear tires

  • Steering type

  • Brake type

  • Clutch type

  • Shock absorber type

  • Dumping mode

  • Wheeltrack

  • Wheelbase

  • Other configurations

    • 3MX single-cylinder semi-enclosed/simple shed

    • 3MX single-cylinder semi-enclosed

    • 170 high-strength steel external span/truss type external span

    • 24/28/30/32/33/35

    • 2350×1540×450
      2700×1600×500

    • 4195×1540×1720
      4560×1600×1825

    • 8 gears/10 gears

    • Front 60016/65016, Rear 70016/75016

    • Recirculating ball/electric power assistance

    • Vacuum power brake/air-cut brake

    • Mechanical clutch

    • Independent front suspension arm

    • Electric-controlled hydraulic lifting and lowering / Hand-controlled hydraulic lifting and lowering

    • 1240/1340

    • 2860/3030

    • Optional colors: Maiang Orange, Shining Red, Star Blue
      Optional configurations: power output, hand-operated throttle, electromagnetic drip, reverse camera, footrests

    • 3MX single-cylinder fully enclosed

    • 3MX one row/one-and-half row

    • 170 high-strength steel external span/truss type external span

    • 24/28/32/33/35

    • 2700×1600×500
      2800×1700×500

    • 4560×1600×1995
      5160×1700×2025

    • 10 gears

    • Front 60016/65016, Rear 70016/75016

    • Recirculating ball/electric power assistance

    • Vacuum power brake/air-cut brake

    • Mechanical clutch

    • Independent front suspension arm

    • Electric-controlled hydraulic lifting and lowering

    • 1264/1340/1496

    • 2860/3030/3380/3580

    • Optional colors: Maiang Orange, Shining Red, Star Blue
      Optional configurations: Key with wireless remote control, electric doors and windows, electric fan, electromagnetic drip, reversing camera

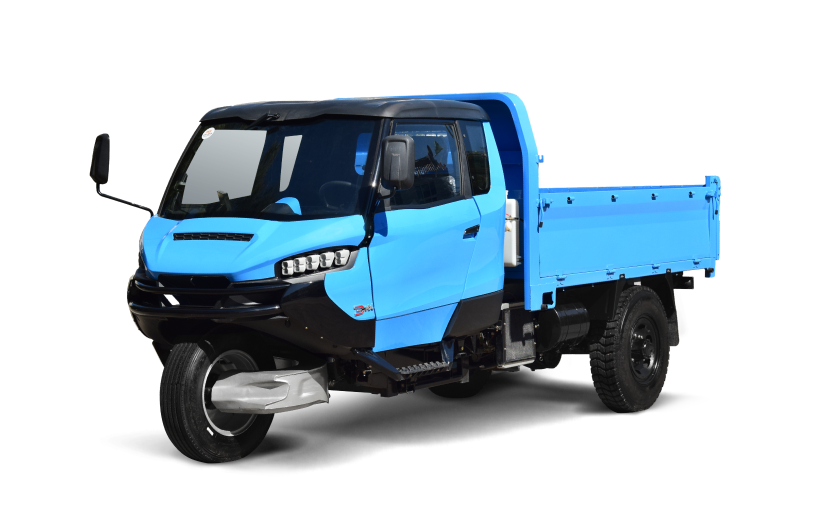

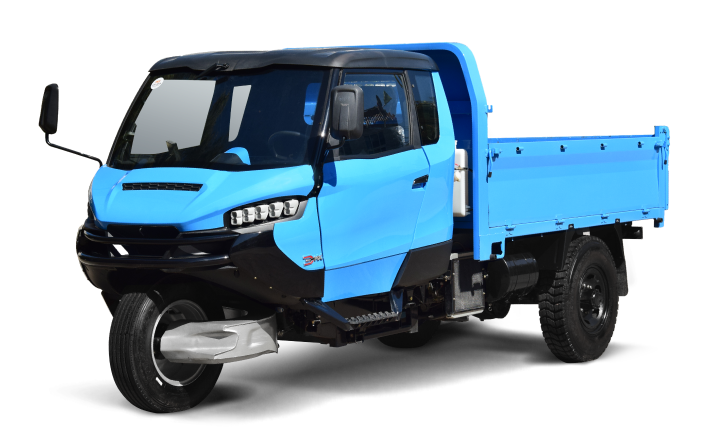

    • 3MX multi-cylinder fully enclosed

    • 3MX one-and-half row

    • 170 high-strength steel external span

    • 480/485/490

    • 2900×1600×450
      3050×1800×500

    • 5040×1600×2085
      5185×1800×2085

    • 130/1030/1060

    • Front 60016/65016, Rear 60016 Dual/70016 Dual/75016

    • Recirculating ball/electric power assistance

    • Vacuum power brake/air-cut brake

    • Mechanical clutch

    • Independent front suspension arm

    • Electric-controlled hydraulic lifting and lowering

    • 1180/1236/1300

    • 3430/3500/3570

    • Optional colors: Maiang Orange, Shining Red, Star Blue
      Optional configurations: Key with wireless remote control, electric doors and windows, electric fan, electromagnetic drip, reversing camera

Expand All

Collapse

The next step

Please feel free to reach us to discover more opportunities together!
